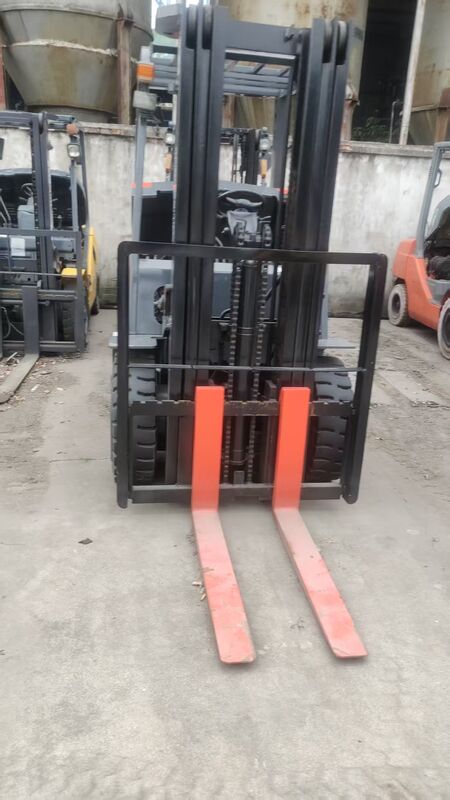

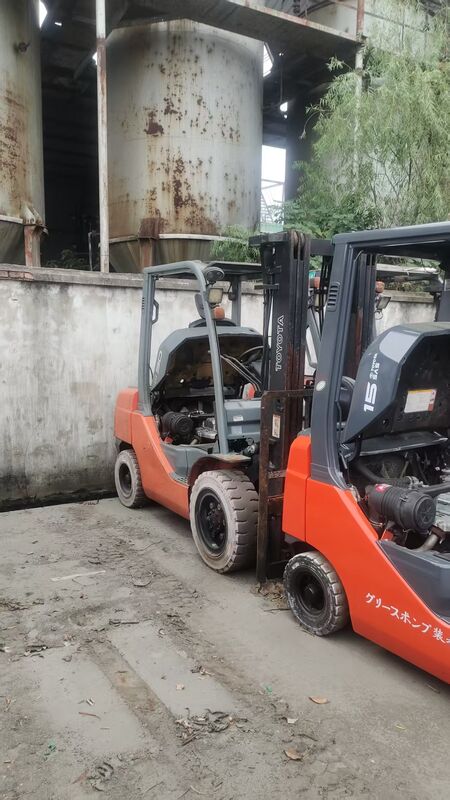

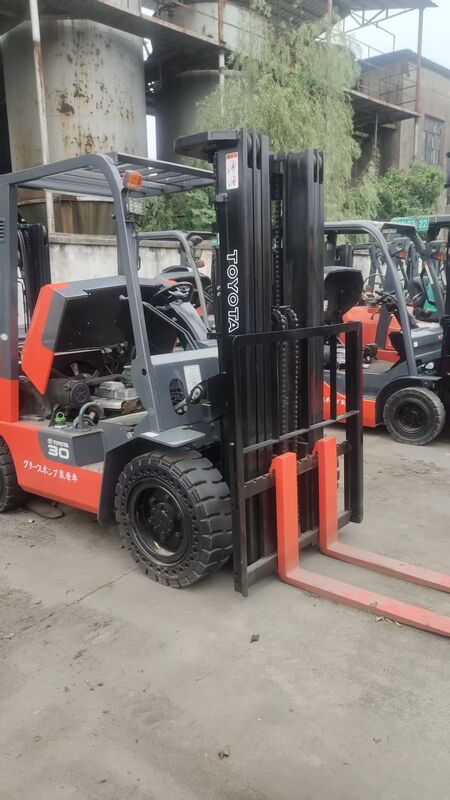

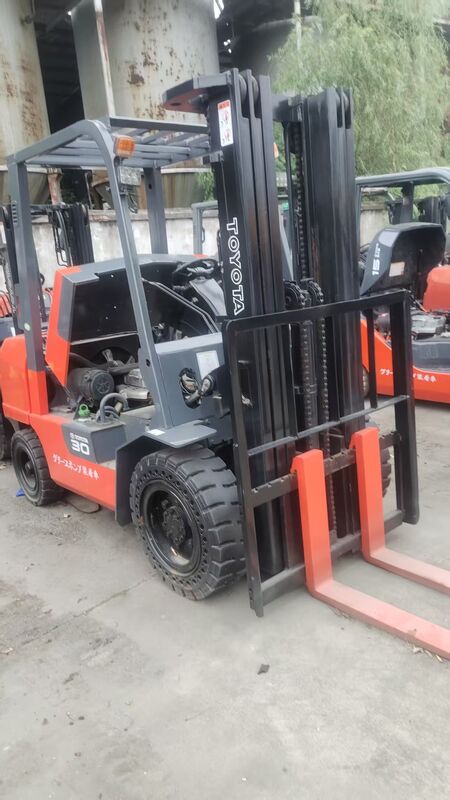

Made in Japan, Toyota fuel forklift，second-hand Toyota forklift

Toyota 30 Forklift Parameters:
The mainstream Toyota 3-ton forklift in the market is divided into standard and off-road versions to meet different working conditions. The key parameters are broken down by hierarchy as follows:
1. [Basic Performance]
Load capacity: The standard version has a rated load of 3000kg, a 500mm load center, and a maximum climbing slope of 15% (increased to 20% for the off-road version);
• Lifting parameters: The maximum height of the standard version is 3 meters (3.3 meters for the off-road version), and the lifting speed without load is 520mm/s. When fully loaded, the off-road version reduces it to 380mm/s;
• Driving speed: The standard version can move forward at 20km/h, while the off-road version can reach 25km/h without load.
2. [Power Configuration]
Standard version engine: Xinchang 490BPG model, 37kW/2650rpm output, matched with YJH265 hydraulic torque converter;
Off road version power: The 4D32G31 diesel engine has a power of 36.8kW (2500rpm) and a torque of 186Nm (1800rpm).
3. [Structural Data]
• Size difference: The standard version has a wheelbase of 1700mm, while the off-road version extends to 1850mm, with front overhangs of 485mm and 600mm respectively;
• Turning radius: Standard version 2420mm, off-road version has stronger passability due to increased wheelbase;
Fork specifications: uniformly adopt 1070 × 125 × 45mm three circumference, with balanced single support bearing capacity.

Professional Inspection: Our engineers thoroughly inspect all components to ensure optimal machine condition.

Certification: We provide brand authorization certificates and pre-sale inspection services.

Technical Support: Factory-trained technicians available for OEM/ODM services.

For inquiries about our engineering machinery, please contact our team.
